In operation for over 65 years, Eaton's Aeroquip® name represents quality and innovation in the hydraulics industry. Eaton offers Aeroquip hose, fittings, adapters, couplings and fluid connectors for all pressures in industrial, aerospace and automotive applications. Manufacturing facilities strategically located around the globe allows Eaton to offer Aeroquip products on demand to keep its customers up and running around the clock.
Parker
Founded in 1918, the evolution of the Parker Appliance Company into Parker Hannifin Corporation illustrates a legacy of innovation. We believe our future growth is assured by honoring Parker's tradition of excellence.
Specification
Displacement 0.8 – 7.9cm3
Press up to 280 Bar
Speed up to 4000 rpm
Fixed Displacement Vane Pump T Series
– Silent technology 3 3
– Displacement from 5.8 cm /rev to 268.7cm /rev
– Wide shaft option SAE and ISO
– Pressure up to 250 bar Speeds up to 2800 RPM
Gear Pump PGP 500 Series
– Superior performance
– Low noise operation at high pressure
– Internal mounts and connections
– Integrated valve capabilities
– Can be configured as a pump or motor
– Speeds up to 4000 RPM
Fixed Displacement Vane Pump T Series
– Silent technology 3 3
– Displacement from 5.8 cm /rev to 268.7cm /rev
– Wide shaft option SAE and ISO
– Pressure up to 250 bar Speeds up to 2800 RPM
Radial Piston – Calzoni
MR/ MRE, MRT/MRTE/ MRTF, MRD/MRDE Series
– High starting torque from 90% to 95% of theoretical
– High control at low speed
– High volumetric efficiency up to 98%
– Low noise
– Resistance to thermal shocks
– Long bearing life
– Reversibility
– Speed accessories, brakes
– Speeds up to 1000 RPM
Fixed Displacement Piston F1/F2 Series
– Pressure up to 345 bar
– High power capability
– Twin flow version available
– High self-priming speed
– Speeds up to 2550 RPM
Low Speed High Torque Motor TE, TF, TG and TH series
– High volumetric efficiency
– Full flow spline cooling
– High pressure shaft seal
– High starting torque
– Speeds up to 1100 RPM
Hydraulic Hose Ferrules
Specifications :
- Certification : ISO/TS 16949
- Dash Size : 04 – 32
- Material : Carbon Steel
- Zinc : Plated
- Ferrules for SAE100R1 AT / EN 853 1SN Hose
- Ferrules for SAE100R2 AT / EN 853 2SN Hose & Jack Hose
- Ferrules for EN 856 4SP & 4SH Hose
| R1 | R2 & Jack Hose | 4SP & 4SH |
| Part Number | Part Number | Part Number | Hose I.D (inchi) | Dash Size |
| 00110 – 04 | 00210 – 04 | 00400 – 04 | 1/4 | 04 |
| 00110 – 05 | 00210 – 05 | 00400 – 05 | 5/16 | 05 |
| 00110 – 06 | 00210 – 06 | 00400 – 06 | 3/8 | 06 |
| 00110 – 08 | 00210 – 08 | 00400 – 08 | 1/2 | 08 |
| 00110 – 10 | 00210 – 10 | 00400 – 10 | 5/8 | 10 |
| 00110 – 12 | 00210– 12 | 00400 – 12 | 3/4 | 12 |
| 00110 – 18 | 00210 – 18 | 00400 – 18 | 1 | 18 |
| 00110 – 20 | 00210 – 20 | 00400 – 20 | 1 ¼ | 20 |
| 00110 – 24 | 00210 – 24 | 00400 – 24 | 1 ½ | 24 |
| 00110 – 32 | 00210 – 32 | 00400 – 32 | 2 | 32 |
Coupling

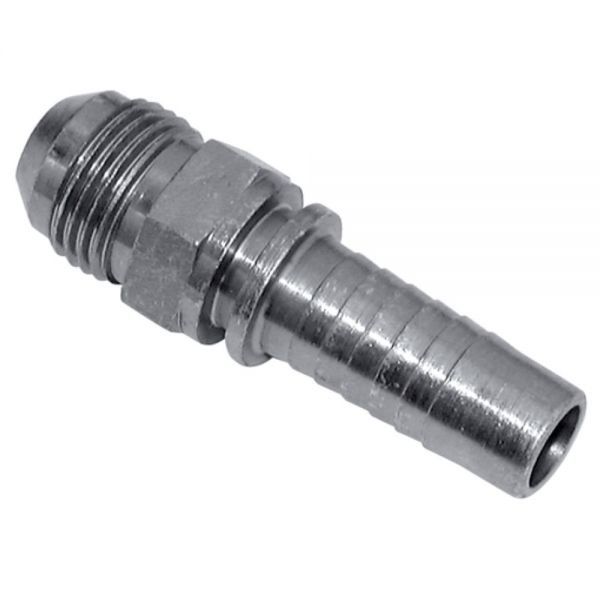

Coupling – JIC Straight
Male Rigid

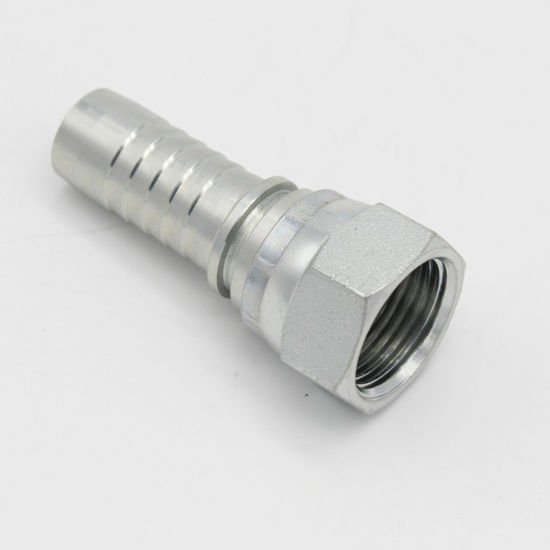

Coupling – JIC Straight Female Swivel

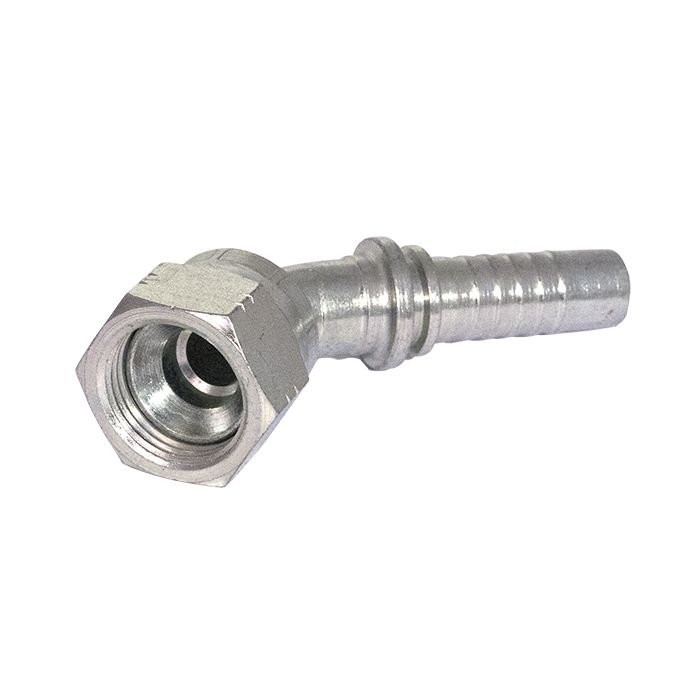

Coupling – JIC Elbow 45° Female Swivel

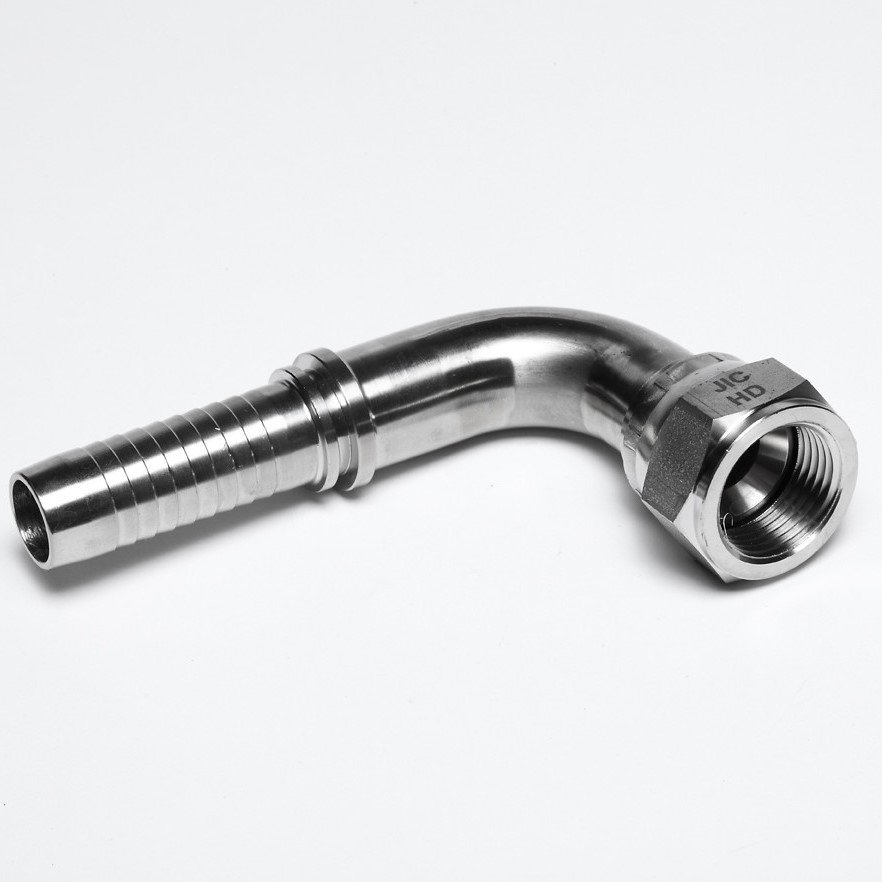

Coupling – JIC Elbow 90° Female Swivel
Coupling – BSP Straight
Male Rigid

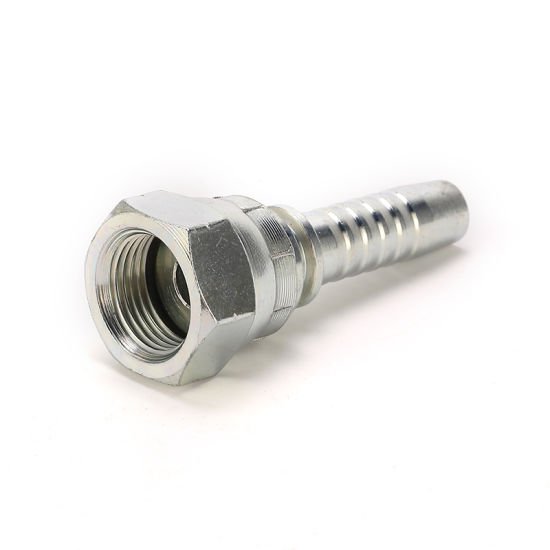

Coupling – BSP Straight
Female Swivel

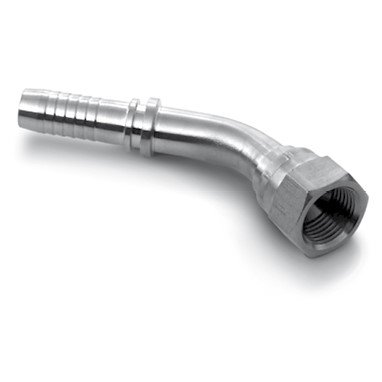

Coupling – BSP Elbow 45° Female Swivel
Coupling – BSP Elbow 90° Female Swivel

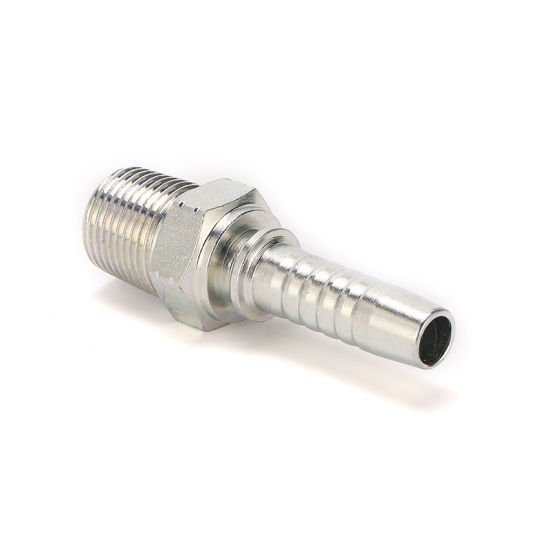

Coupling – NPT Straight
Male Rigid
Coupling – O Ring Straight (L & S size) Female Swivel
Coupling – O Ring Elbow 45° (L & S size) Female Swivel
Coupling – O Ring Elbow 90° (L & S size) Female Swivel
Specifications :
Material : Carbon Steel.
Size : ¼" to 2" for R1, R2 & R4.
Type : Straight , Elbow 45° & Elbow 90°. L size : Light/Thin (Low Pressure).
S Size : Heavy/Thick (High Pressure).
