Hydraulic Hose Ferrules
Specifications :
- Certification : ISO/TS 16949
- Dash Size : 04 – 32
- Material : Carbon Steel
- Zinc : Plated
- Ferrules for SAE100R1 AT / EN 853 1SN Hose
- Ferrules for SAE100R2 AT / EN 853 2SN Hose & Jack Hose
- Ferrules for EN 856 4SP & 4SH Hose
| R1 | R2 & Jack Hose | 4SP & 4SH |
| Part Number | Part Number | Part Number | Hose I.D (inchi) | Dash Size |
| 00110 – 04 | 00210 – 04 | 00400 – 04 | 1/4 | 04 |
| 00110 – 05 | 00210 – 05 | 00400 – 05 | 5/16 | 05 |
| 00110 – 06 | 00210 – 06 | 00400 – 06 | 3/8 | 06 |
| 00110 – 08 | 00210 – 08 | 00400 – 08 | 1/2 | 08 |
| 00110 – 10 | 00210 – 10 | 00400 – 10 | 5/8 | 10 |
| 00110 – 12 | 00210– 12 | 00400 – 12 | 3/4 | 12 |
| 00110 – 18 | 00210 – 18 | 00400 – 18 | 1 | 18 |
| 00110 – 20 | 00210 – 20 | 00400 – 20 | 1 ¼ | 20 |
| 00110 – 24 | 00210 – 24 | 00400 – 24 | 1 ½ | 24 |
| 00110 – 32 | 00210 – 32 | 00400 – 32 | 2 | 32 |
Coupling

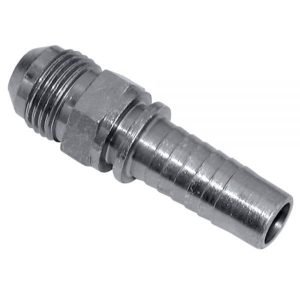

Coupling – JIC Straight
Male Rigid

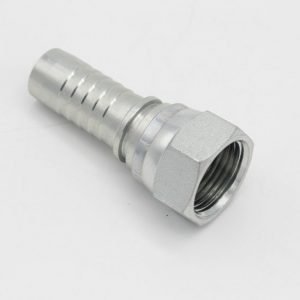

Coupling – JIC Straight Female Swivel
Coupling – JIC Elbow 45° Female Swivel

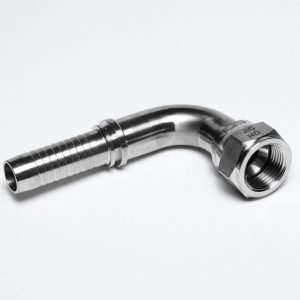

Coupling – JIC Elbow 90° Female Swivel
Coupling – BSP Straight
Male Rigid

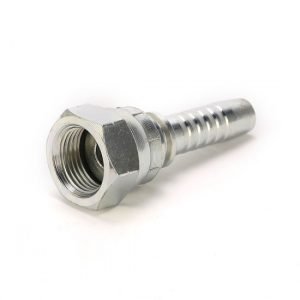

Coupling – BSP Straight
Female Swivel

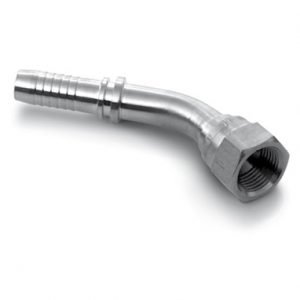

Coupling – BSP Elbow 45° Female Swivel
Coupling – BSP Elbow 90° Female Swivel

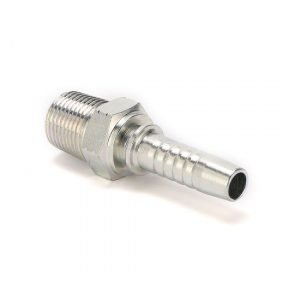

Coupling – NPT Straight
Male Rigid
Coupling – O Ring Straight (L & S size) Female Swivel
Coupling – O Ring Elbow 45° (L & S size) Female Swivel
Coupling – O Ring Elbow 90° (L & S size) Female Swivel
Specifications :
Material : Carbon Steel.
Size : ¼” to 2” for R1, R2 & R4.
Type : Straight , Elbow 45° & Elbow 90°. L size : Light/Thin (Low Pressure).
S Size : Heavy/Thick (High Pressure).
