In operation for over 65 years, Eaton's Aeroquip® name represents quality and innovation in the hydraulics industry. Eaton offers Aeroquip hose, fittings, adapters, couplings and fluid connectors for all pressures in industrial, aerospace and automotive applications. Manufacturing facilities strategically located around the globe allows Eaton to offer Aeroquip products on demand to keep its customers up and running around the clock.
Parker
Founded in 1918, the evolution of the Parker Appliance Company into Parker Hannifin Corporation illustrates a legacy of innovation. We believe our future growth is assured by honoring Parker's tradition of excellence.
Specification
Displacement 0.8 – 7.9cm3
Press up to 280 Bar
Speed up to 4000 rpm

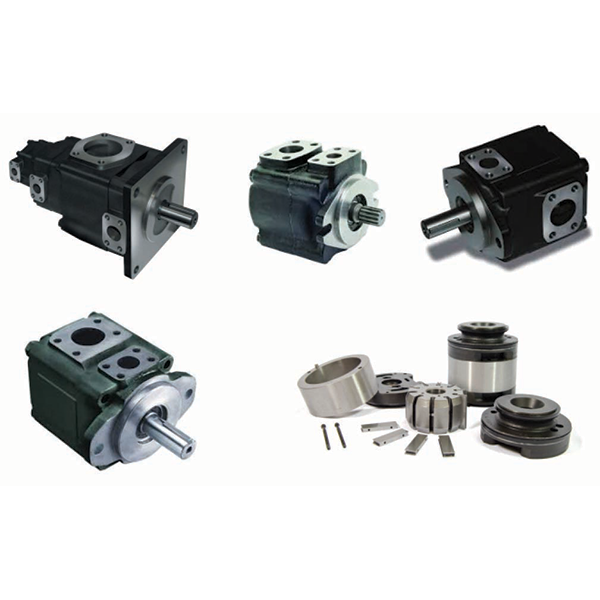

Fixed Displacement Vane Pump T Series
– Silent technology 3 3
– Displacement from 5.8 cm /rev to 268.7cm /rev
– Wide shaft option SAE and ISO
– Pressure up to 250 bar Speeds up to 2800 RPM

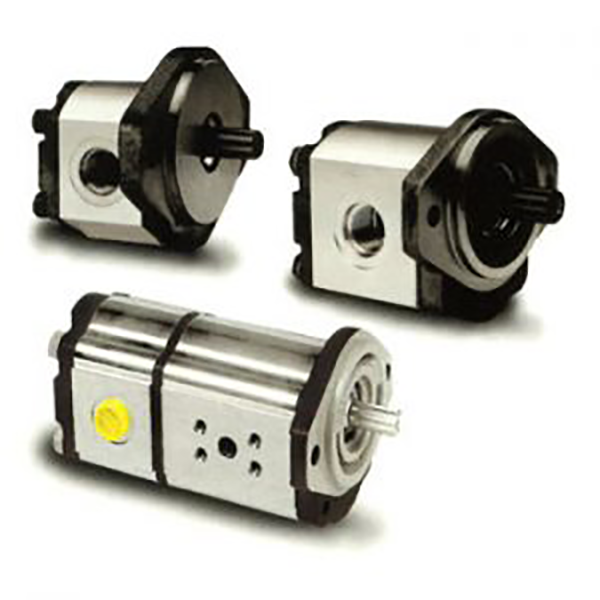

Gear Pump PGP 500 Series
– Superior performance
– Low noise operation at high pressure
– Internal mounts and connections
– Integrated valve capabilities
– Can be configured as a pump or motor
– Speeds up to 4000 RPM
Fixed Displacement Vane Pump T Series
– Silent technology 3 3
– Displacement from 5.8 cm /rev to 268.7cm /rev
– Wide shaft option SAE and ISO
– Pressure up to 250 bar Speeds up to 2800 RPM

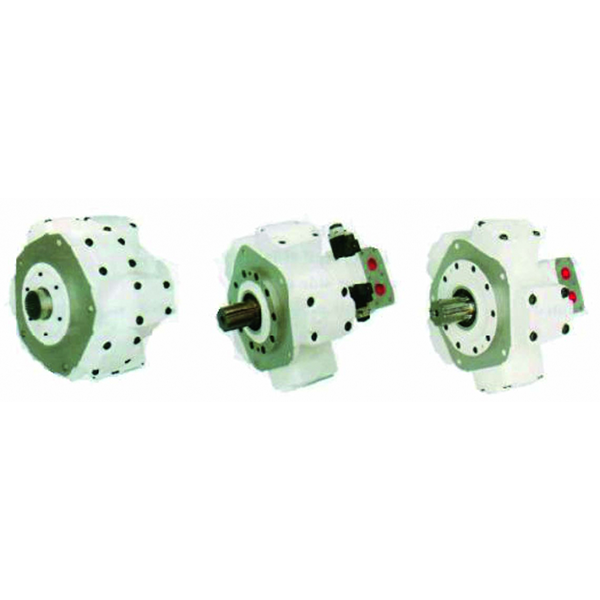

Radial Piston – Calzoni
MR/ MRE, MRT/MRTE/ MRTF, MRD/MRDE Series
– High starting torque from 90% to 95% of theoretical
– High control at low speed
– High volumetric efficiency up to 98%
– Low noise
– Resistance to thermal shocks
– Long bearing life
– Reversibility
– Speed accessories, brakes
– Speeds up to 1000 RPM

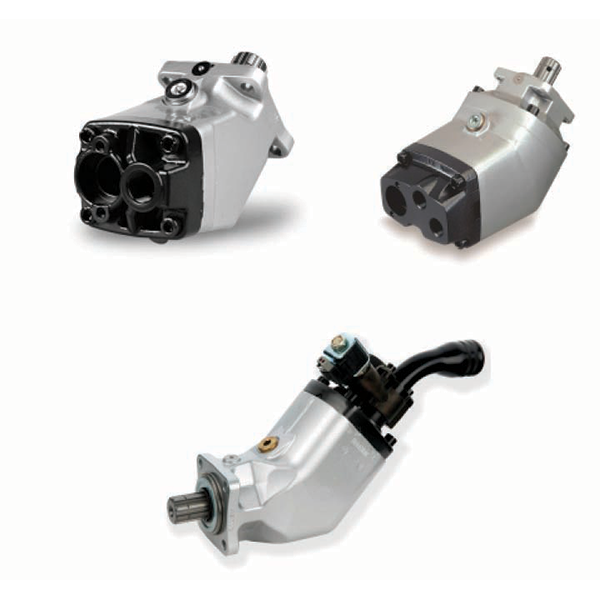

Fixed Displacement Piston F1/F2 Series
– Pressure up to 345 bar
– High power capability
– Twin flow version available
– High self-priming speed
– Speeds up to 2550 RPM

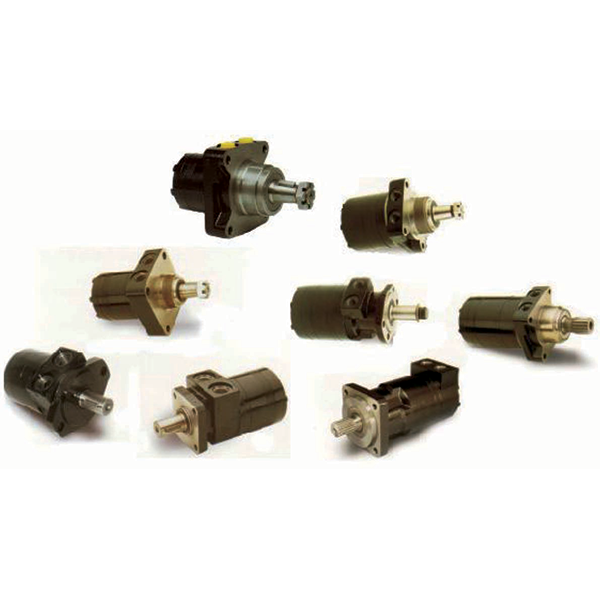

Low Speed High Torque Motor TE, TF, TG and TH series
– High volumetric efficiency
– Full flow spline cooling
– High pressure shaft seal
– High starting torque
– Speeds up to 1100 RPM
CBI-RV80-350 Combi Vibro Drilling Rig
Depth Capacity
NQ Rod size : 600 m Corring
80 m Vibration
Power Pack
Diesel Engine Cummins Type 6CTA8.3-6A
Max. Power 195 kW @1800 rpm
Hydraulic System
Max. Pressure (Factory Setting) 250 Bar
Maximal Torque Vibration
140 kN
Drill Mast and Feed System
Drilling Angle : 45 Degree
Pull Down Force : 18500 Kg @250 Bar
Pull Up Force : 9000 Kg @250 Bar
Feed Stroke : 3 m
Rod Pull: 6 m
Hydraulic Main Winch Assy
Rotation Motor MA-45 Hydroleduc Type Piston
Hydraulic Main Wireline Assy
Rotation Motor 2000 Series Eaton Type Disc Valve
Hydraulic Control Panel
SD25 Walvoil Max. Flow 240 Liter
Maximal Frequency Vibration
70 Hz
Rotation Speed Vibration
31-62 rpm
Rotary Drill Head Maximal Torque Corring
596-951 kN
Rotation Speed Corring
235-1560 rpm
